Fitment

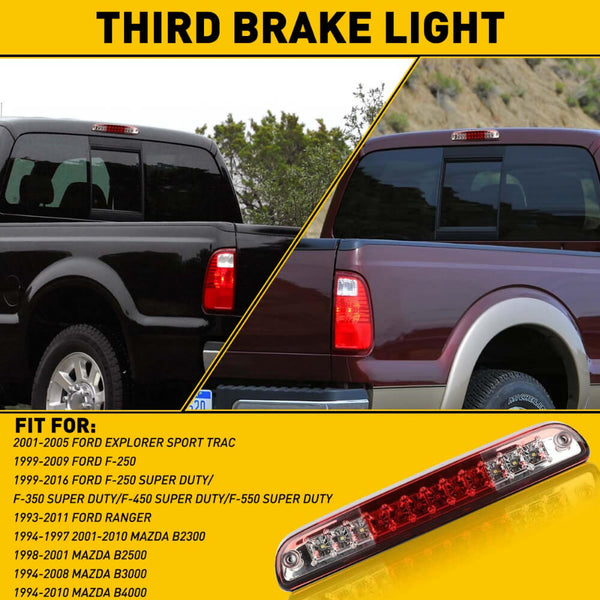

Fit for:
2001-2005 Ford Explorer Sport Trac
1999-2009 Ford F-250
1999-2016 Ford F-250/F-350/F-450/F-550 Super Duty
1993-2011 Ford Ranger
1994-1997 and 2001-2010 Mazda B2300
1998-2001 Mazda B2500
1994-2008 Mazda B3000
1994-2010 Mazda B4000
(Please check vehicle model and product size before purchasing!)

GOOD TO KNOWS! -White & Red Shell LED Third Brake Light

The AUXITO 3rd brake light uses technologically advanced LEDs that emit light up to 10 times faster than incandescent bulbs to alert tailgating drivers faster, and with the 12 super-bright LED beads, it's more effective at avoiding rear-end accidents, thus improving driving safety.
The long-lasting LED light beads consume less energy and are more durable than traditional incandescent bulbs, so you don't have to worry about service life and frequent replacement! The combination of red brake lights and white cargo lights as well as the red and white lens housing design meets the truck's daily use needs while also bringing a new modern look to your vehicle!

Specifications

Packaging include: LED third brake light*1, Waterproof cushion*1
Light color: white + red
Shell color: White+Red
Lens Material: Polycarbonate
LED Quantity: 12leds
Voltage: 12 Volts

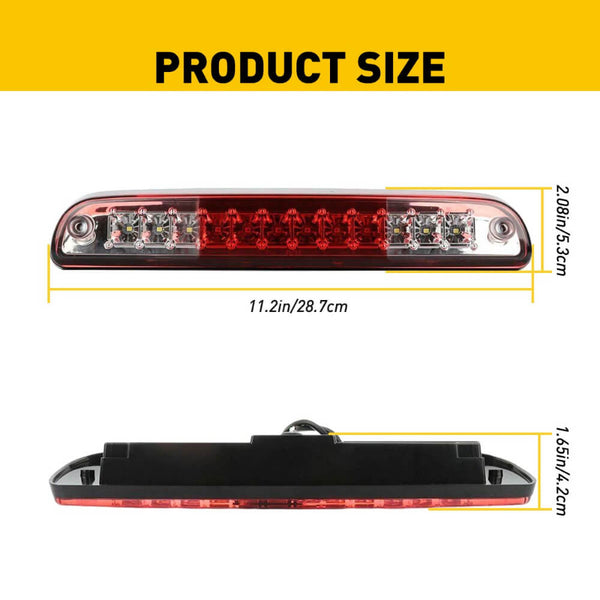

Size: 11.2in*2.08in

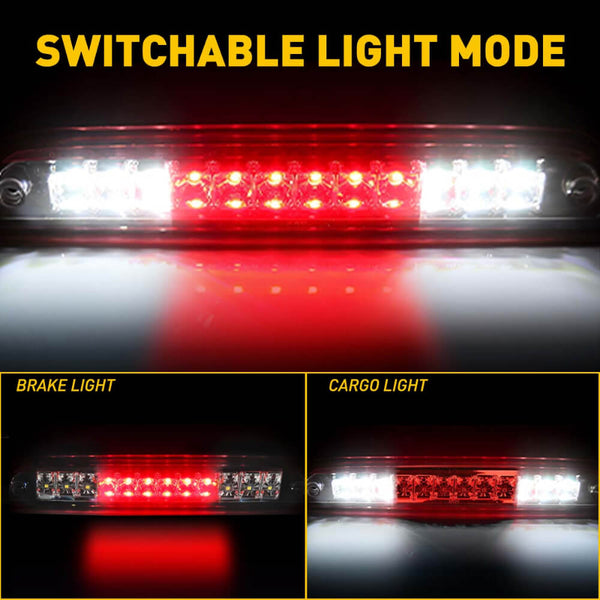

Mode: white cargo lights(left and right), red brake light (in the middle)
Waterproof: IP67
Service life: more than 5000hrs

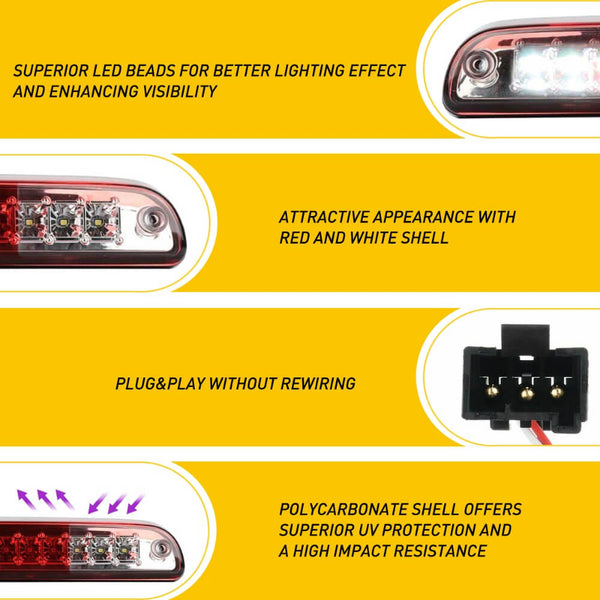

Features

【Well-illuminated】This third brake light with a full Led lights source and 12 built-in LEDs (6 bulbs for brake, 6 bulbs for cargo) can indicate braking and reverse well, which will bring brighter indications to avoid rear-end accidents.

【Brighter and Fast LED Third Brake Light】 Ford third brake light is powered with high power LED chip, brings brighter indication of brake to notice to drivers behind you that you are braking, keep you safe.

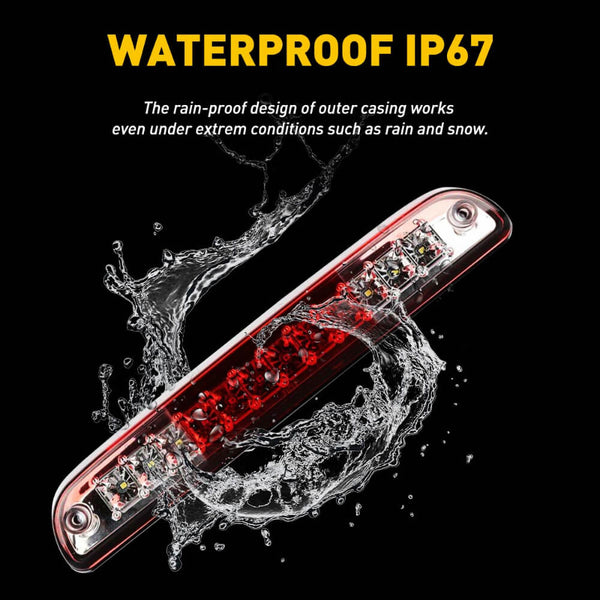

【IP67 Waterproof】AUXITO third brake lights have an IP67 waterproof rating to ensure that the LED 3rd brake lights work perfectly in all weather. Well-sealed IP67 cover will prevent any sand, water, dirt, snow, or dust.

【Easy Installation】The third brake light has a plug-and-play mounting pattern and comes with the waterproof cushion. Tips: It is suggested to use the factory mounting screws. This will help it to fit very flush and tight to the truck.

Installation Step

1.Loose the original screws
2.Remove the old brake light
3.Connect the new brake light with the plug
4.Stick the brake light seal
5.Tighten with original screws
6.Finish! Test your new light

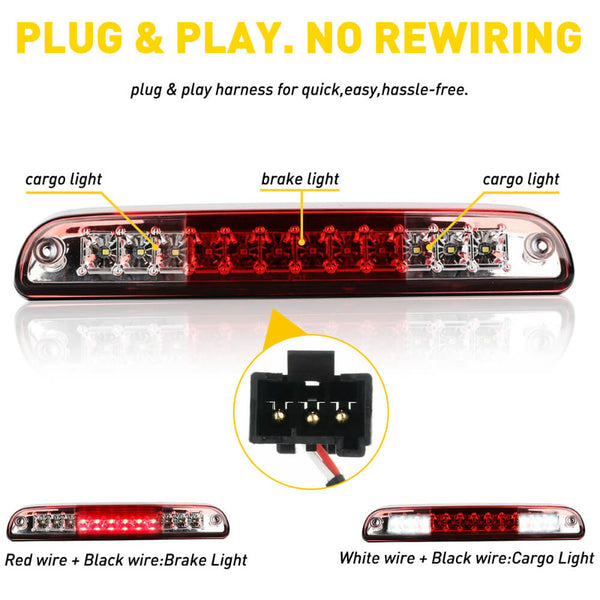

Wire Connection:

Black Wire (negative) + White Wire (Positive), White light works;
Black Wire (negative) + Red Wire (Positive), Red light works.
Please notice that the white lights are cargo lights, not reverse lights!

Tips:
1. After removing your old brake light, please use some alcohol to clean the gasket area and lip on the light. Then attach to the light.
2. Please note that the white lights on the two sides are not reverse lights. They are CARGO LIGHTS. They are controlled by your interior light switch.
