2005-2006 Acura RSX LED Bulbs Upgrade

$99.99
$62.99
Package

15%

OFF

Enjoy Additional 15% OFF with Code: AUXITOVIP. Copy Code

  • Visa
  • Mastercard
  • JCB
  • Maestro
  • American Express
  • Diners Club
  • Discover
  • PayPal
  • Afterpay

2-Year Warranty with Pay with Ease

  • Detail
  • Review

For you to drive your 2005-2006 Acura RSX in a safe and sane manner, you need proper visibility. The Whole kit comes with LED bulbs that vary in Lumen output for you to end up with just the right source of illumination to light up the road ahead of you.

Package Included:

  • 2 M3 Series 9005 led headlight bulbs (High Beam)
  • 2 M3 Series H1 led headlight bulbs (Low Beam)
  • 2 T15 White (Back up Lights)
  • 4 7443 Red (Brake Lights)
  • 2 7443 Red (Center High Mount Stop Lights)
  • 2 7440 Amber (Front Turn Signal Lights)
  • 2 7440 Amber (Rear Turn Signal Lights)
  • 2 T10 Amber (Front Side Marker Lights)
  • 2 T10 Red (Rear Side Marker Lights)
  • 4 T10 white ( License Plate/Trunk Lights(2*2pcs/set))
  • 4 31MM White (Dome/Map Lights(2*2pcs/set))

LED Bulbs replacement model & technical specifications

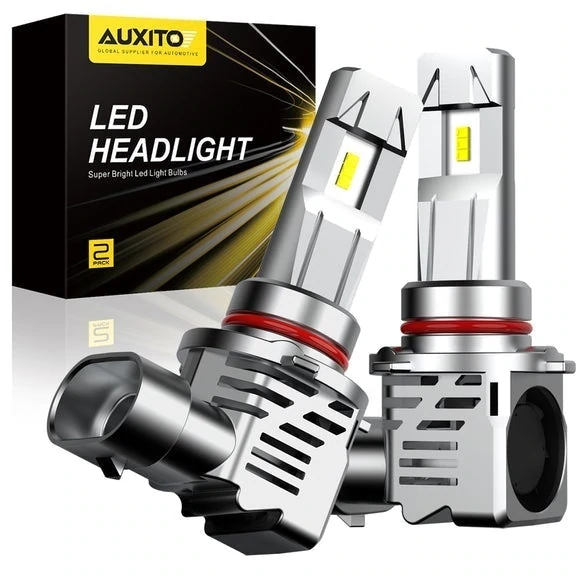

High Beam: 9005 LED headlight Bulbs

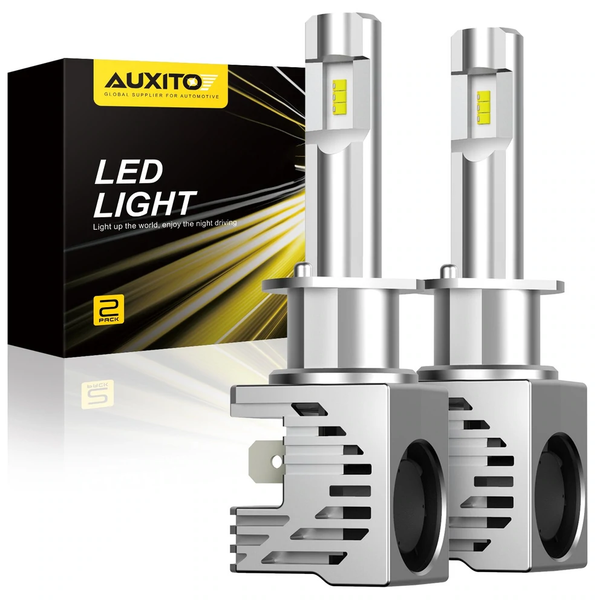

Low Beam: H1 LED headlight Bulbs

  • Luminous: 12000lm per set, 300% brighter than halogen headlights
  • Color Temperature: 6500K
  • Power: 26W per bulb
  • 1:1 Perfect Beam Pattern: Concentrate beams that shine further down the road.
  • 360-Degree Lighting: 360-degree illumination and no dark spots
  • Long Lifespan: >30,000hrs
  • Adjustable Beam: Make sure the LED chips face 3 and 9 o'clock after installation for perfect performance
  • IP65 Waterproof: Do not need to worry about failure during extreme weather.

How to install an H1 LED headlight bulb on the 2005-2006 Acura Rsx?

Here is the installation video about the H1 LED headlight bulb, you can follow the video to install it. If you have any other questions, you can free feel to contact the customer service staff.

*The wiring adapters are included in the package for the H1 LED headlight bulb.

Tips on replacing the H1 LED headlight bulb low beam

(you can finish replacing the H1 LED headlight bulb low beam in less than 10 minutes!)
1) Remove Battery Hold-Down Bolt from Radiator-support (Driver-Side) or lift Power-Steering Reservoir from its mounting Clip (Passenger-Side).
2) Move Battery or Reservoir toward motor to create room for your favorite hand.
3) Unplug Headlight Wire (Rectangular-Plug with two female-blade Sockets).
4) Remove Weather-Boot (~2.5” Dia Rubber cup with two Pull-Tabs).
5) Gently unhook Retainer-Clip Wire (Unhook and move Clip toward fender). Owner’s Manual has a good graphic to educate your fingers.
6) Rotate Blub from Headlight-Housing (Bulb + Socket with two male-blades).
7) Unplug Bulb from Bulb-Socket (Bulb with metal base one male-blade).
8) Check Bulb-Socket male-blades against female-sockets to make sure male-blades are not bent.
9) Obtain new AUXITO H1 LED Headlight Bulb (Do Not Touch Bulb-Glass with bare fingers. Skin-Oils become corrosive at bulb operating temperatures).
10) Plug new Bulb into Bulb-Socket. (Handle by Bulb-Socket Only)
11) Place new Bulb and Bulb-Socket back into Headlight-Housing.
12) Looking through front of Headlight-Housing lens, Rotate Bulb-Socket until two small holes in the metal base align with holes in Headlight Housing.
13) Re-Hook Retainer-Clip Wire across Bulb-Socket, securing it in the Headlight Housing.
14) Replace Weather Boot, seat it all the way onto the Headlight Housing.
15) Reattach Headlight Wire
16) Re-secure battery or Reservoir.

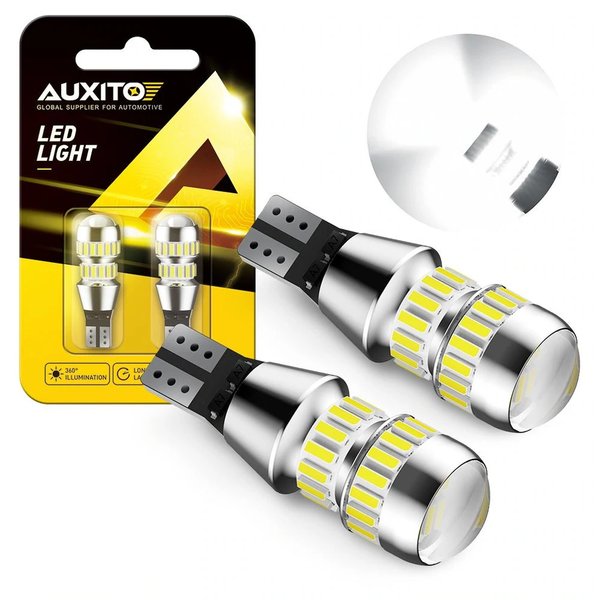

T15 Back-Up Light Bulbs:

  • Lumen: 1300LM per bulb
  • Color: 6000K White
  • Working Voltage: DC9V-16V (Fits 12V Vehicles)
  • Working Power: 5.5W
  • Current: 0.45A

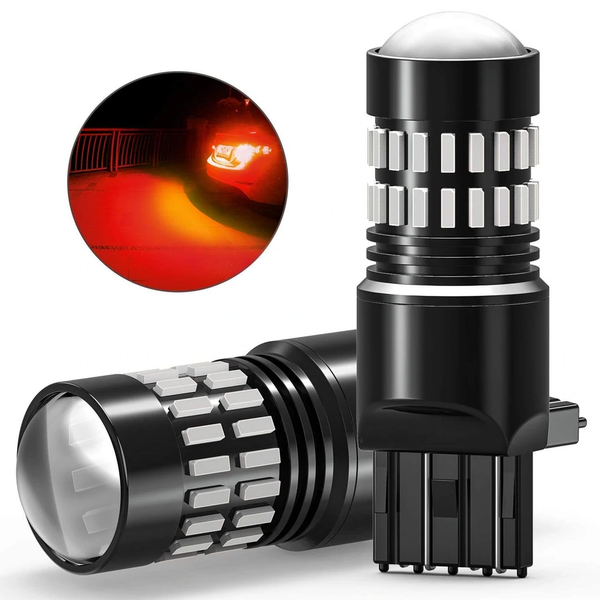

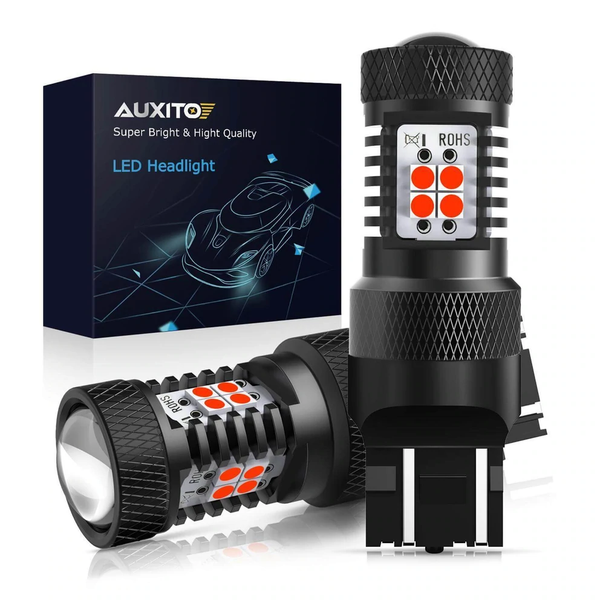

7443 Brake/Tail Light Bulbs(2 piar):

  • Lumen: 1600LM per bulb
  • Color: Brilliant Red
  • Working Voltage: DC 9V to 18V wide-range voltage design

For more videos on installing LED bulbs in the Acura RSX, click here


7443 Center High Mount Stop Light Bulbs:

  • Lumen: 1000LM per bulb
  • Color: Brilliant Red
  • Special Features: This bulb will strobe flash at the beginning of the braking model and then keep solid light, which blinking for braking stop safety alert, much easier noticed while braking and much safer when stop required. The blinking times are restricted and can drive on the road safely.

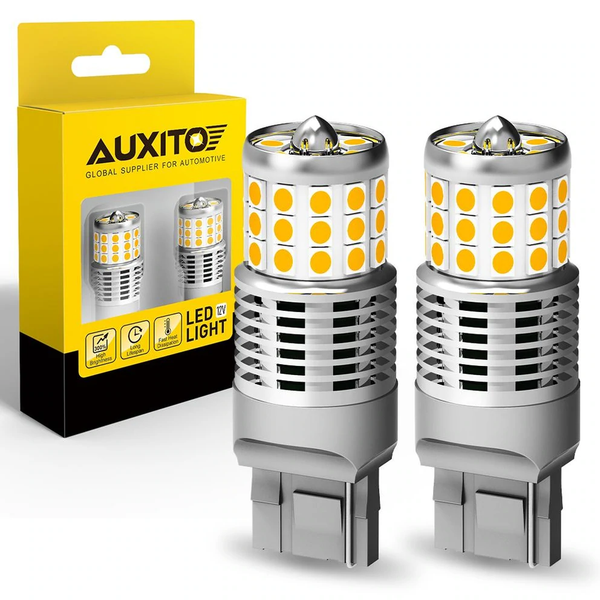

7443 Front/Rear Turn Signal Light Bulbs:

  • Power: 24W
  • Voltage: DC12-24V
  • Light Color: 1500K Amber

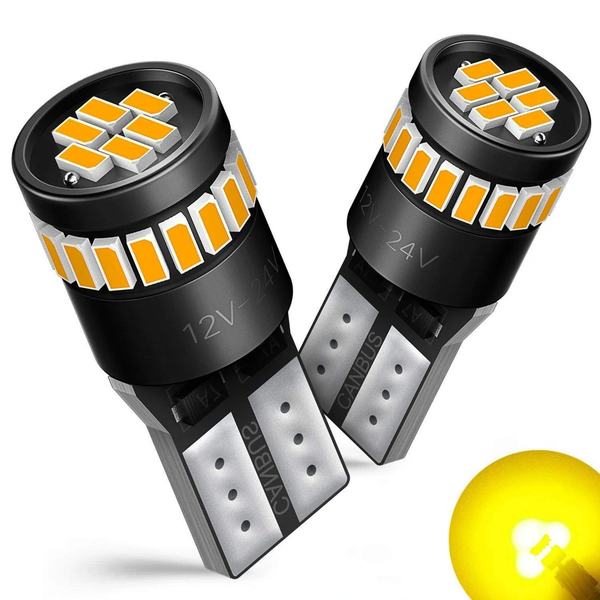

T10 Front Side Marker Light Bulbs:

  • Voltage: 12V
  • Color: Amber yellow
  • Power: 2W/PC
  • Lumen: 240LM/PC

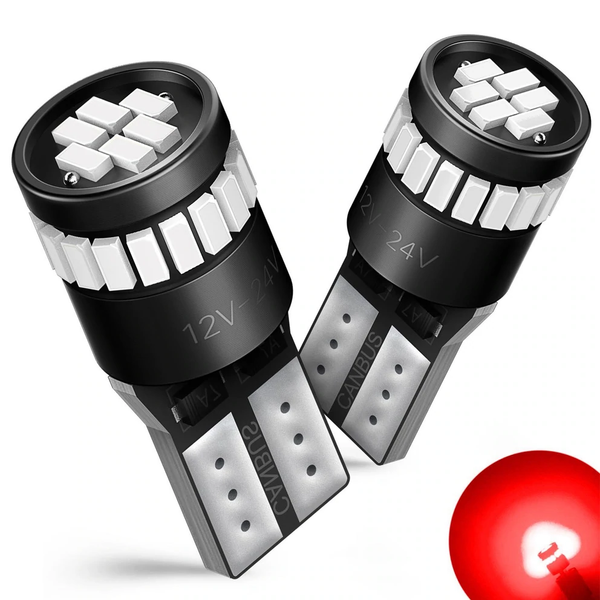

T10 Rear Side Marker Light Bulbs:

  • Voltage: 12V
  • Color: Red
  • Power: 2W/PC
  • Lumen: 240LM/PC

T10 License Plate/Trunk Light Bulbs:

  • Voltage: 12V
  • Color: white
  • Power: 2W/PC
  • Lumen: 240LM/PC

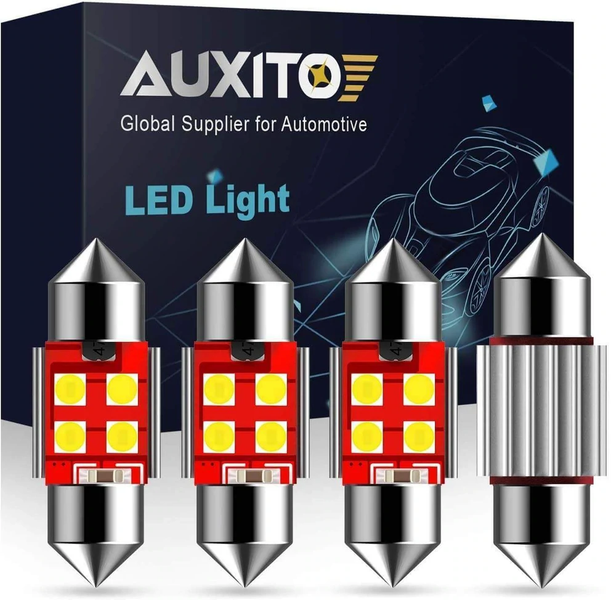

31MM Map/Dome Light Bulbs:

  • Voltage: 10-30V DC
  • Color: 6000K
  • Power: 2W/PC

If you need the other LED bulbs, please check the model user manual or contact us by mail at support@auxito.com
